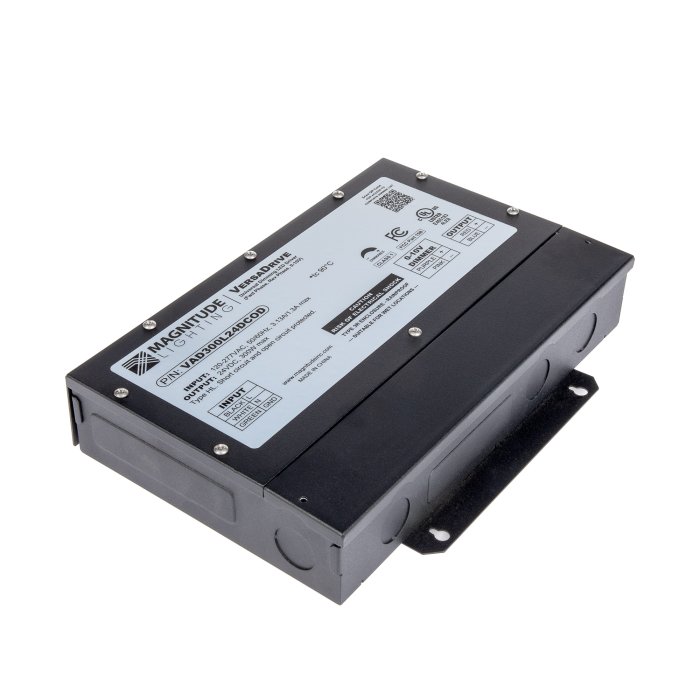

Angled top view of Magnitude VersaDrive 5-way Universal Dimmable Constant Voltage LED Power Supply

Magnitude VersaDrive 5-way Universal Dimmable Constant Voltage Power Supply - 300W - 24 VDC

Name: Magnitude VersaDrive 5-way Universal Dimmable Constant Voltage Power Supply - 300W - 24 VDC
Brand: Super Bright LEDs
SKU: VAD300L24DCOD
Price: 290.99 USD
Availability: InStock

Part Number

VAD300L24DCOD

Features

Magnitude VersaDrive Class 1: 300W power supply
5-way dimming compatibility: MLV, ELV, 0-10V, PWM, and potentiometer
Universal AC input, single 24 VDC output
Highly-efficient operation: 91% at 120V, 93% at 277V
Protected against over-current, over-voltage, over-temperature, overload, and short circuit

View more details

Free Shipping

On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Skip to the end of the images gallery

3 photos

Skip to the beginning of the images gallery

Overview

This Magnitude VersaDrive 5-way Universal Dimmable Power Supply delivers up to 300W with versatile dimming options: MLV, ELV, 0-10V, PWM, or potentiometer. Its constant output of 24 VDC at 91%+ efficiency protects the longevity of lighting and conserves energy. The powder-coated aluminum housing is rated NEMA 3R for indoor and outdoor installations. Easily connect lighting using the access panel enclosing the pre-installed lever connectors for pigtail wires. Hardwire using the 7/8" knockouts for 1/2" conduit or with a power cord (sold separately).

Product Details:

Class 1: 300W
Designed for constant voltage operation
NEMA 3R weather-resistant
Universal AC input 120-277 VAC
UL Listed
5-year warranty

Applications

Commercial Buildings
Cove Lighting
Educational Facilities
Exhibitions
Home Interiors
Offices
Retail Shops
Sign Lighting
Stage & Theaters
Strip Lights
Task Lighting
Trade Shows

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More

Class 1

Class 1 LED drivers have output ranges outside UL Class 2 (UL 1310). Safety protection is required within the fixture (LED light) on Class 1 products. Class 1 circuits must be powered by a source with a maximum of 30V and 1 kVA.

Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

NEMA X

The National Electrical Manufacturers Association (NEMA) standard refers to a set of technical specifications and guidelines established by NEMA. These standards ensure the safety, performance, and interoperability of electrical products and systems. NEMA standards cover a wide range of topics, including wiring, motors, enclosures, and industrial controls, providing a framework that promotes consistency, reliability, and safety in the manufacturing and use. Compliance with NEMA standards is critical for manufacturers to meet regulatory requirements and ensure product compatibility and safety.

Type 3R (Outdoor use)
Protects against rain, sleet, and snow
Provides additional protection against ice formation on the enclosure

Specifications

Ambient Operating Temperature Range	-40~+50 °C (-40~+122 °F)
Brand	Magnitude
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies.	Class 1, FCC, UL Listed
Dimmable	Yes
Dimming Control TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase MLV (Magnetic Low Voltage): Also known as Leading Edge or Forward Phase Dimming, this type of dimming controls the amount of power delivered to the load by chopping off the leading edge of the AC waveform, reducing the power supplied and thus dimming the output. ELV (Electronic Low Voltage): Also known as Trailing Edge or Reverse Phase Dimming, this type of dimming controls the amount of power delivered to the load by chopping off the trailing edge of the AC waveform. These dimmers can result in smoother dimming performance, reduced flicker, and reduced hum, especially with electronic low voltage (ELV) lighting. 0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level.	0-10V, Potentiometer, PWM, TRIAC (ELV), TRIAC (MLV)
Environmental Rating	Suitable for Wet Locations
Input Frequency Range	50 - 60 Hz
Input Connection Type	Pigtail, Quick Connector
Input Voltage	120-277 VAC
Number of Outputs	1
Output Current	12.5A (12500mA)
Output Power A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion.	300 Watts
Output Voltage	24 VDC
Product Weight	7.8 lb (3.5 kg)
Warranty	5 Year
