Constant Voltage Power Supply - Metal Frame - 12V - 100W / 200W - Optional Power Cord
Part Number:
DVF-xW-12V
Manufacturer Part Number:
Starting at
$15.99
ea.
Starting at
Was
Features
- Overvoltage, short-circuit, and overload protection
- Free air convection cooling
- EMI filtration built-in
- High reliability, high efficiency
Related Products
Overview

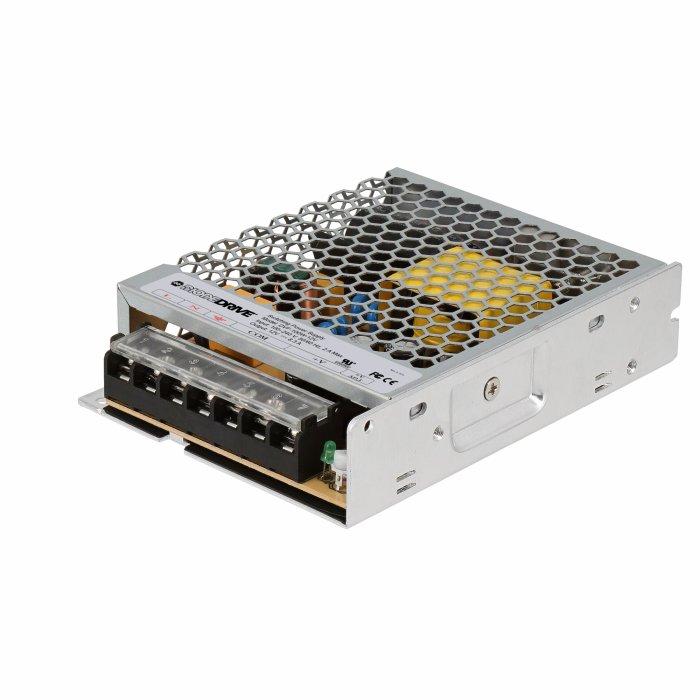

This 12V Constant Voltage Power Supply is enclosed, with a single-output and a low-profile design. It features EMI filtration and integrated overload, short-circuit, and overvoltage protection. The 100W and 200W models are designed with a metallic mesh frame that allows free air convection cooling to prevent over-heating. Use the selector switch on the 200W power supply to easily select 100 or 240 VAC input. Connection to the power supply is simple using the multi-tap screw terminals. The input can be hardwired or connected using the optional power cord with a 1-15P plug.
Product Details:
- Durable metal housing
- Screw terminal block connections
- 100-240 VAC
- LED indicator for power on
- UL Recognized
- 5-year warranty
DVF-xW-12V Specification Sheet Applications:
- Commercial Buildings
- Cove Lighting
- Educational Facilities
- Exhibitions
- Home Interiors
- Offices
- Retail Shops
- Sign Lighting
- Stage & Theaters
- Strip Lights
- Task Lighting
- Trade Shows
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
Specifications
| Ambient Operating Temperature Range | -30 to 70 °C (-22 to 158 °F) |
|---|---|
| Brand | DiodeDrive |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
CE, FCC, UL Recognized |
|
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
Non-Dimmable |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Input Connection Type | Screw Terminal |
| Input Voltage | 100-240 VAC |
| Number of Outputs | 1 |
| Output Connection Type | Screw Terminals |
| Output Voltage | 12 VDC |
| Warranty | 5 Year |
| Part NO | Output Current |
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
|---|---|---|
| DVF-100W-12V | 8.3 A | 100 Watts |
| DVF-100W-12V(POWERCORD) | 8.3 A | 100 Watts |
| DVF-200W-12V | 16.7 A | 200 Watts |
| DVF-200W-12V(POWERCORD) | 16.7 A | 200 Watts |
