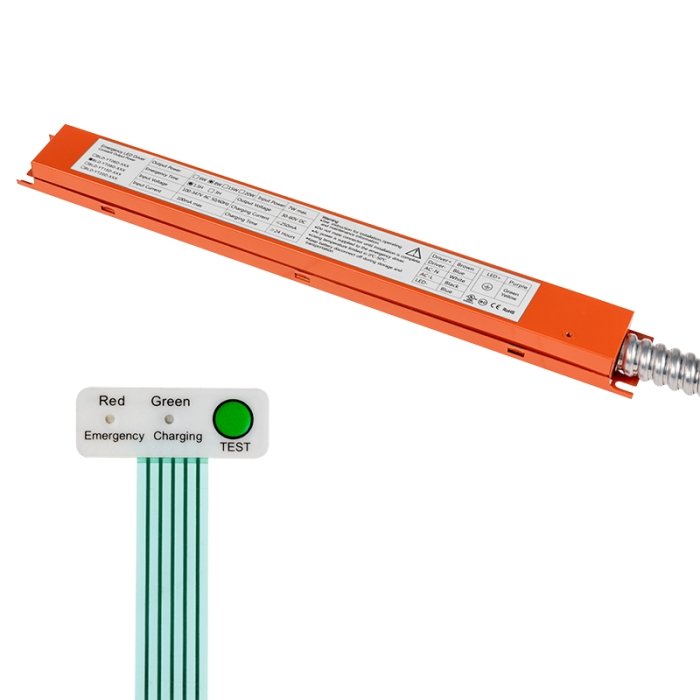

Slim Profile Emergency Backup Driver and Battery - 7W - 30–60 VDC Output

Slim Profile Emergency Backup Driver and Battery - 7W - 30-60 VDC Output

brand logo
Part Number
BLD-YT08D-XXX

Features

  • Slim design suitable for troffer and light panel installation
  • At least 90 minute operation in emergency mode
  • Li-ion battery - full recharge in 48 hours after complete discharge
  • Wide range input voltage - 100–347 VAC
  • 30–60 VDC output
  • 7W max output, 133–260 mA output (relative to 30–60 VDC voltage)
  • Low-profile adhesive test button
  • UL924 Listed and meets CEC Title 20 standards
View more details
In Stock
$89.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Overview

The emergency driver and battery works with drivers in commercial luminaires to keep them powered during emergency outages. When AC supply power is lost, the emergency driver switches on automatically to provide backup battery power directly to arrays at a rated output voltage of 30–60 VDC. The superior Li-ion battery provides backup light for a minimum of 90 minutes, with 10 times the shelf life of a traditional lead acid battery. The emergency battery and driver assembly are UL924 Listed and allow for both field and factory installations on suitable luminaires. The slim design of this kit is ideal for installation in tight spaces such as on troffers and light panels in recessed ceilings as well to accommodate a wider variety of installation types than more traditional emergency backup drivers/batteries with out sacrificing performance.

Product Details:

  • Slim design allows installation in tighter spaces, ideal for troffers and light panels
  • Housing constructed of durable galvanized steel
  • Soft switching to prevent voltage spikes and increase longevity of the modules
  • Wide range input voltage - 100–347 VAC
  • 30–60 VDC output
  • Rated IP20, suitable for damp locations
  • Open/Short/Over-Voltage/Over Temperature protection
  • UL924 Listed and meets CEC Title 20 standards
  • 5 year warranty

Applications

  • Commercial Downlights
  • Commercial Lighting
  • Emergency Lights
  • Linear Strip Fixtures
  • Panel Lights
  • Suspended Grid Ceilings
  • Troffer Fixtures
UL Listed
UL Listed
5 Years
5 Years
100-347 VAC
100-347 VAC
Constant-Current
Constant-Current
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Specifications

Ambient Operating Temperature Range 0~+50 °C (32~+122 °F)
Battery Type Li-ion
Brand Super Bright LEDs
Certifications/Compliance UL Listed
Dimmable No
Dimming Control Non-Dimmable
Emergency Operation Time ≥90 Minutes
Environmental Rating Non-weatherproof, Suitable for Damp Locations
Input Connection Type Pigtail
Input Voltage 100-347 VAC
Max Input Current 100 mA
IP Rating IP20
Material Steel Housing
Max Output Current 133 mA @ 60 VDC, 260 mA @ 30 VDC
Output Connection Type Pigtail
Output Voltage 30-60 VDC
Recharge Time 24 Hours
Surge Protection 1 kV (L-N)
Warranty 5 Year
