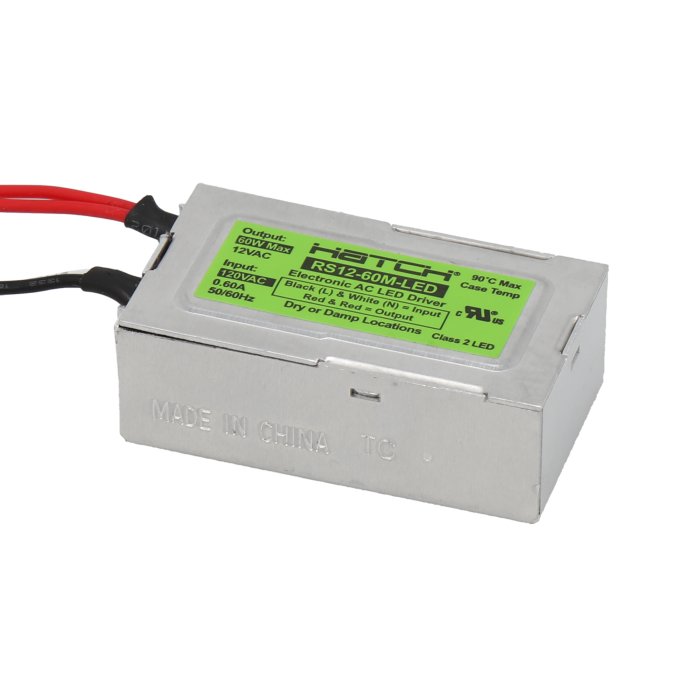

Hatch 60W RS Series AC LED Driver - 120-277 VAC - TRIAC Dimmable

brand logo
Part Number: RS12-60M-LED
Manufacturer Part Number:
$25.99 ea.
In Stock
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Class 2 compliant for added safety
  • Supports a wide dimming range
  • Integrated short circuit protection
View more details

Overview

The Hatch RS Series 60W AC LED Driver is a 60W driver designed for low-voltage applications. It is compatible with standard low-voltage dimmers for smooth, flicker-free dimming. Its durable, sealed design helps protect against moisture, ensuring reliable performance.

Product Details:

  • Durable aluminum housing
  • Suitable for dry and damp locations
  • TRIAC Dimmable
  • 120-277 VAC
  • UL Recognized
  • 5-year warranty
5 Years
5 Years
5 Years
5 Years
UL Recognized
UL Recognized
UL Recognized
UL Recognized
Class 2
Class 2
Class 2
Class 2
Triac Dimmable
Triac Dimmable
Triac Dimmable
Triac Dimmable

Specifications

Ambient Operating Temperature Range -20~+90 °C (-4~+194 °F)
Brand Hatch Lighting
Certifications/Compliance Click for more information about this specification Class 2, UL Recognized
Dimmable Yes
Dimming Control Click for more information about this specification TRIAC (ELV)
Environmental Rating Click for more information about this specification Suitable for Damp Locations
Input Frequency Range 50 Hz, 60 Hz
Input Connection Type Pigtail
Input Voltage 120 VAC
Max Input Current 600 mA
IP Rating Click for more information about this specification IP20
Output Connection Type Pigtail
Output Current 5000 mA
Output Power Click for more information about this specification 60 Watts
Output Voltage 12 VAC
Surge Protection 2.5 kV
Warranty 5 Year
Wire Gauge 18 AWG
