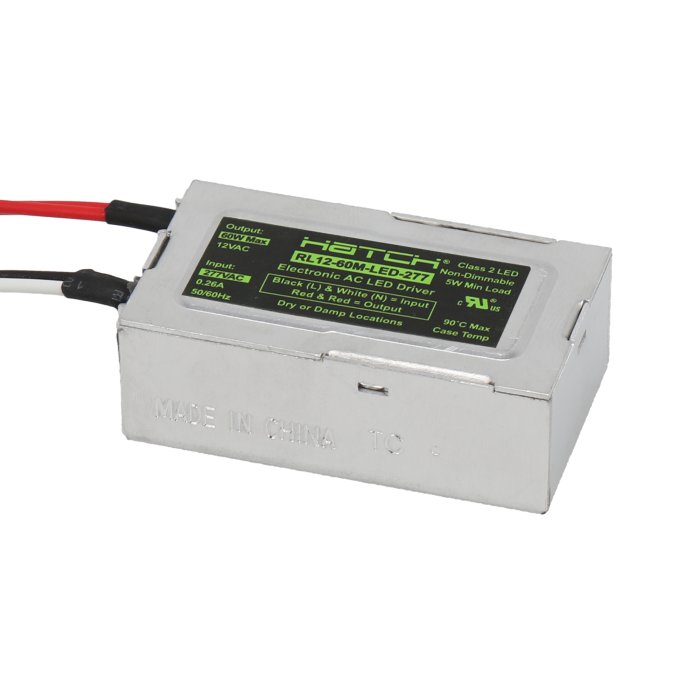

Hatch 60W RL Series AC LED Driver - 277 VAC - Class 2

brand logo
Part Number: RL12-60M-LED-277
Manufacturer Part Number:
$16.99 ea.
In Stock
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Supports multiple units per circuit
  • Flicker-free operation with a wide dimming range
  • Class 2 compliant for added safety
View more details

Overview

The Hatch RL Series 60W AC Driver provides smooth, flicker-free dimming down to 0%. This compact, Class 2 driver supports a wide range of loads and integrates easily into new or existing installations. Its advanced dimming technology ensures stable performance across multiple systems. Built for efficiency and reliability, the RL Series is ideal for both residential and commercial applications.

Product Details:

  • Durable metal housing
  • Suitable for dry and damp locations
  • ELV Dimmable
  • 277 VAC
  • UL Recognized
  • 5-year warrantyli>
5 Years
5 Years
5 Years
5 Years
UL Recognized
UL Recognized
UL Recognized
UL Recognized
Class 2
Class 2
Class 2
Class 2

Specifications

Ambient Operating Temperature Range -20~+90 °C (-4~+194 °F)
Brand Hatch Lighting
Certifications/Compliance Click for more information about this specification Class 2, UL Recognized
Dimmable No
Dimming Control Click for more information about this specification Non-Dimmable
Environmental Rating Click for more information about this specification Suitable for Damp Locations
Input Frequency Range 50 Hz, 60 Hz
Input Connection Type Pigtail
Input Voltage 277 VAC
Max Input Current 260 mA
IP Rating Click for more information about this specification IP20
Output Connection Type Pigtail
Output Current 5000 mA
Output Power Click for more information about this specification 60 Watts
Output Voltage 12 VAC
Surge Protection 2.5 kV
Warranty 5 Year
Wire Gauge 18 AWG
