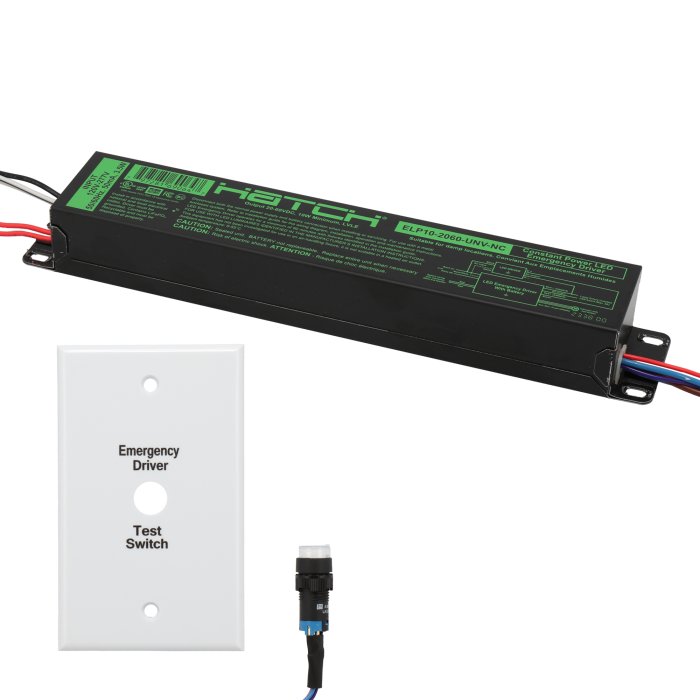

Hatch 10W LED Emergency Driver - High-Efficiency - 120-277 VAC

brand logo
Part Number: ELP10-2060-UNV-NC
Manufacturer Part Number:
$73.99 ea.
In Stock
Request a Quote
box-open-solid
truck-fast-solid
Free Shipping
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Compatible with unswitched and switched fixtures
  • Provides 90 minutes of emergency operation after a 24-hour charge
  • Includes test switch with integrated charge indicator
  • Built-in protection against over-voltage, short circuit, and over-current
View more details

Overview

The high-efficiency Hatch LED Emergency Driver meets California Energy Commission (CEC) Title 20 efficiency requirements and is certified in the CA Title 20 Appliance Efficiency Database. It allows an LED lighting fixture to be used for normal and emergency operations. In the event of a power failure, the driver switches to emergency mode and operates the existing fixture for at least 90 minutes. The driver includes a test switch with an integrated charge indicator.


Product Details:

  • Durable metal housing
  • Suitable for dry locations
  • LiFePO4 battery
  • 120-277 VAC
  • UL Listed
  • 5-year warranty

Package Includes:

  • 1 - LED Emergency Driver
  • 2 - Tek Screws
  • 1 - Wall Plate
  • 1 - Test Button
  • 1 - Luminaire Mod. Label
  • 1 - Installation Guide
  • 3 - Twist-on Wire Connectors
  • 2 - Wall Plate Screws

Documents
5 Years
5 Years
5 Years
5 Years
UL Listed
UL Listed
UL Listed
UL Listed
Class 2
Class 2
Class 2
Class 2
FCC
FCC
FCC
FCC
CEC Title 20 Compliant
CEC Title 20 Compliant
CEC Title 20 Compliant
CEC Title 20 Compliant
UL 924
UL 924
UL 924
UL 924

Specifications

Ambient Operating Temperature Range 0 to 55 °C (32 to 131 °F)
Battery Type LiFePO4
Brand Hatch Lighting
Certifications/Compliance Click for more information about this specification CEC Title 20 Compliant, Class 2, FCC, UL Listed
Dimmable No
Emergency Operation Time 90+ Minutes
Environmental Rating Click for more information about this specification Suitable for Damp Locations
Input Connection Type Pigtail
Input Voltage 120-277 VAC
Output Connection Type Pigtail
Output Current 518mA @ 20 VDC, 179mA @ 58 VDC
Output Power Click for more information about this specification 20 Watts
Output Voltage 24-55 VDC
Recharge Time 24 Hours
Warranty 5 Year
Wire Gauge 18 AWG, 22 AWG
printer Print Specifications

All specifications are subject to change without notice. All products are RoHS compliant.
